HR150 101.6mm Square Outlet

The HR150 gutter profile, part of the HR range, is manufactured from robust, high-quality aluminium. The HR Range offers the appearance of half-round gutters but with far higher outlet and gutter capacities. Additionally, HR150’s top fix design eliminates the need for external support brackets.

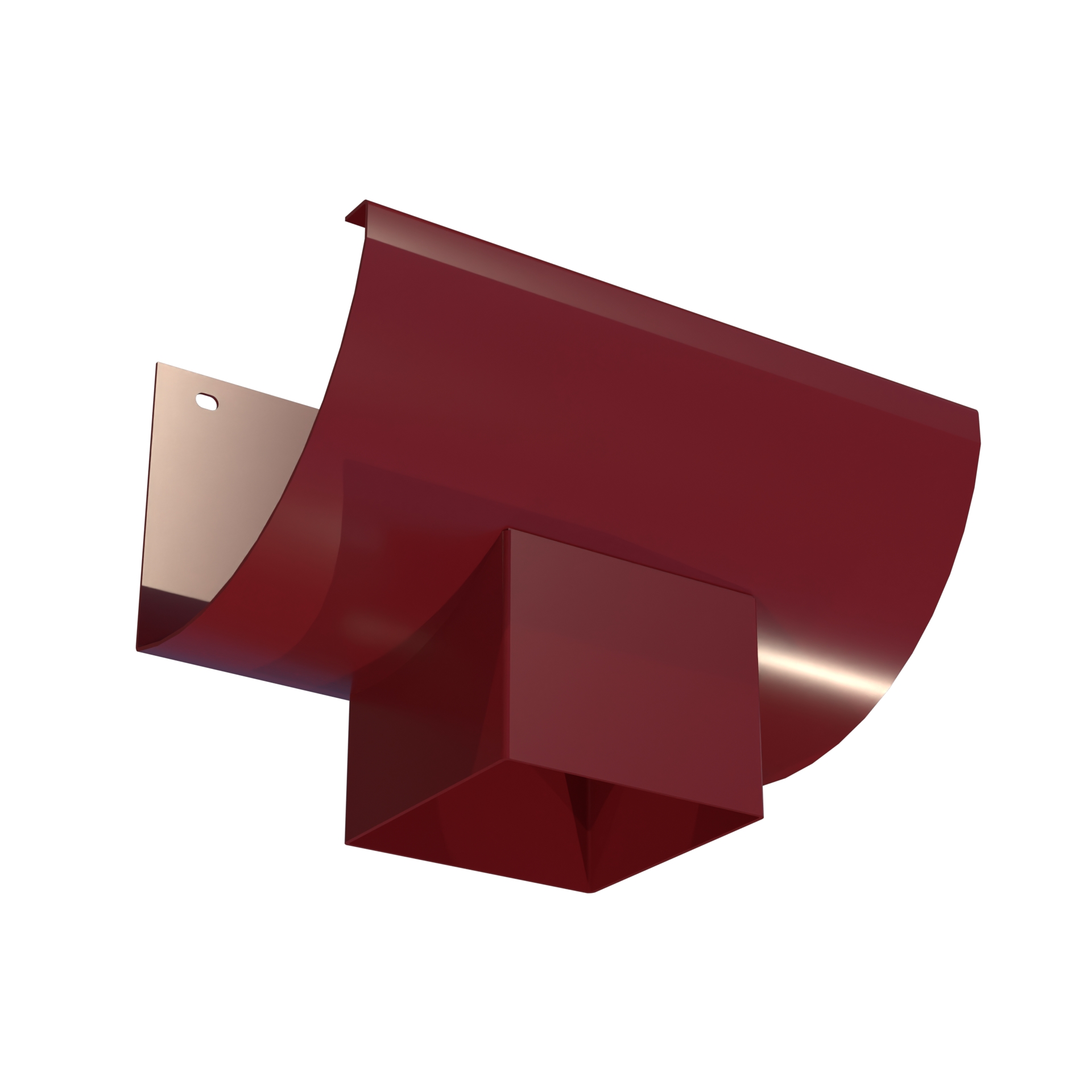

As part of the system, the 101.6 mm Square Outlet for HR150 Gutter directly connects the gutter to the downpipe. This allows rainwater to flow efficiently while keeping a clean, streamlined appearance.

Key features:

• Enhanced Capacity: Dales HR Range offers the appearance of half-round gutters but with far higher outlet and gutter capacities.
• Bracket-Free Installation: The system directly fixes to the fascia which eliminates the need for traditional support brackets and provides a clean, streamlined appearance.
• Leak-Free Jointing: Dales over-strap joint system with silicone sealant accommodates aluminium’s high coefficient of expansion, ensuring a durable fit.
• Durability and Longevity: Constructed from high-quality aluminium, the HR range is designed for long-term performance.

Benefits:

• 100% Recyclable
• Polyester powder coated to BS 12206-1:2004.
• Available in gloss, matt and satin (subject to availability).
• A wide range of standard components are available.

Suitable for the following uses:

The HR range, including the 101.6 mm Square Outlet for HR150Gutter, provides significantly greater water flow capacity than standard half-round systems, making them ideal for projects requiring high-performance drainage. Suitable for:

• Residential.
• Education.
• Healthcare.
• Commercial.
• Leisure.
• Mixed Use.
• Infrastructure.
• Retail.

Fixing instructions:

• Click here to download HR150 fixing instructions.

* Sealant chargeable on material orders under £100+VAT
